Earthquake-Resistant DI Pipe, R.J. Pipe

Reliable Investment

R.J.Pipe is an advanced design of Push-in flexible restrained Joint that its locking system prevents from pipe separation during earthquake or subsidence. Notably, increased safety in water supply networks and a significant reduction in water loss are among the most important advantages of using these pipes.

The use of restrained fittings ensures pipeline integrity and helps distribute stress and strain among the various pipeline components. A key feature of this connection type is the ease of assembly and disassembly, eliminating the need for nuts and bolts.

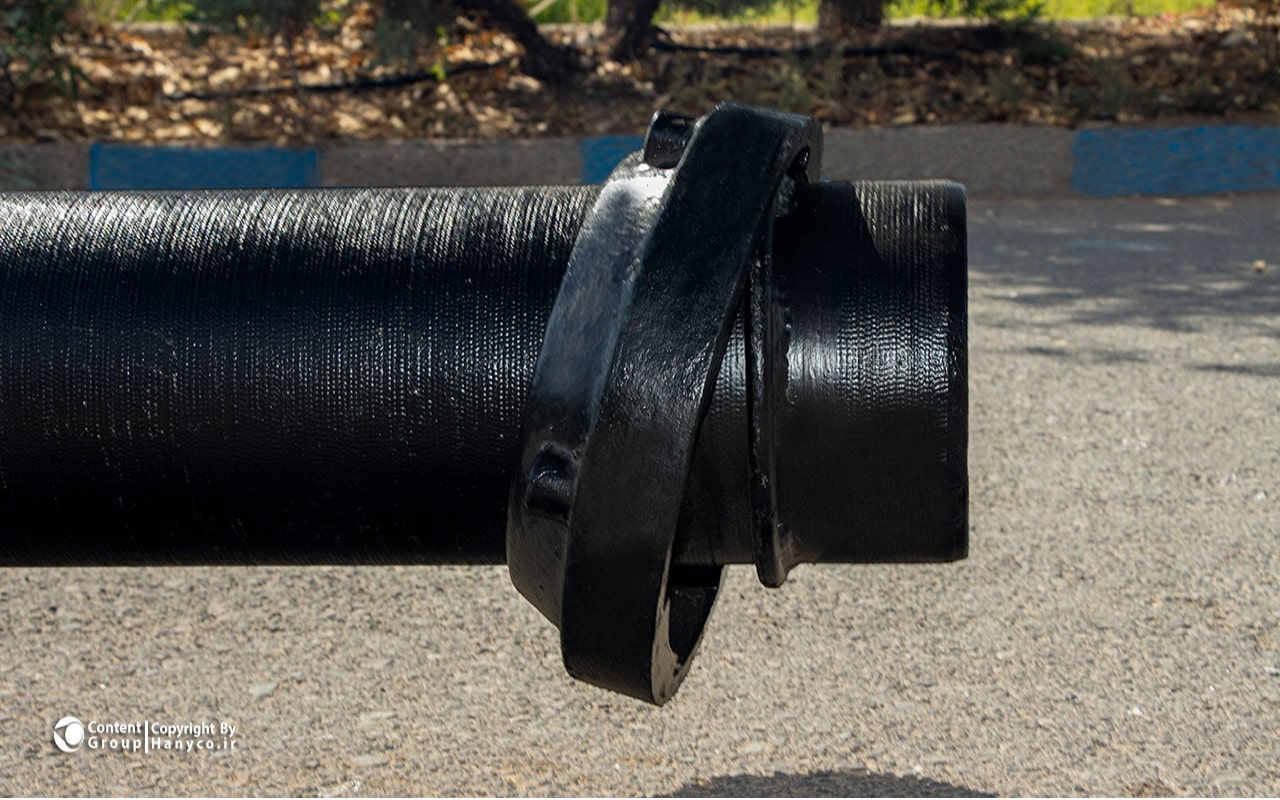

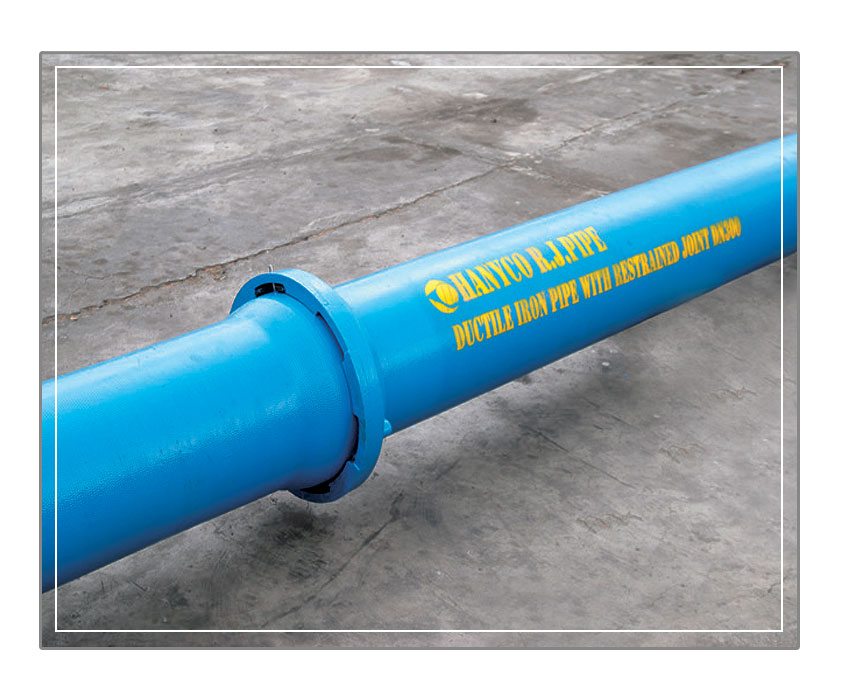

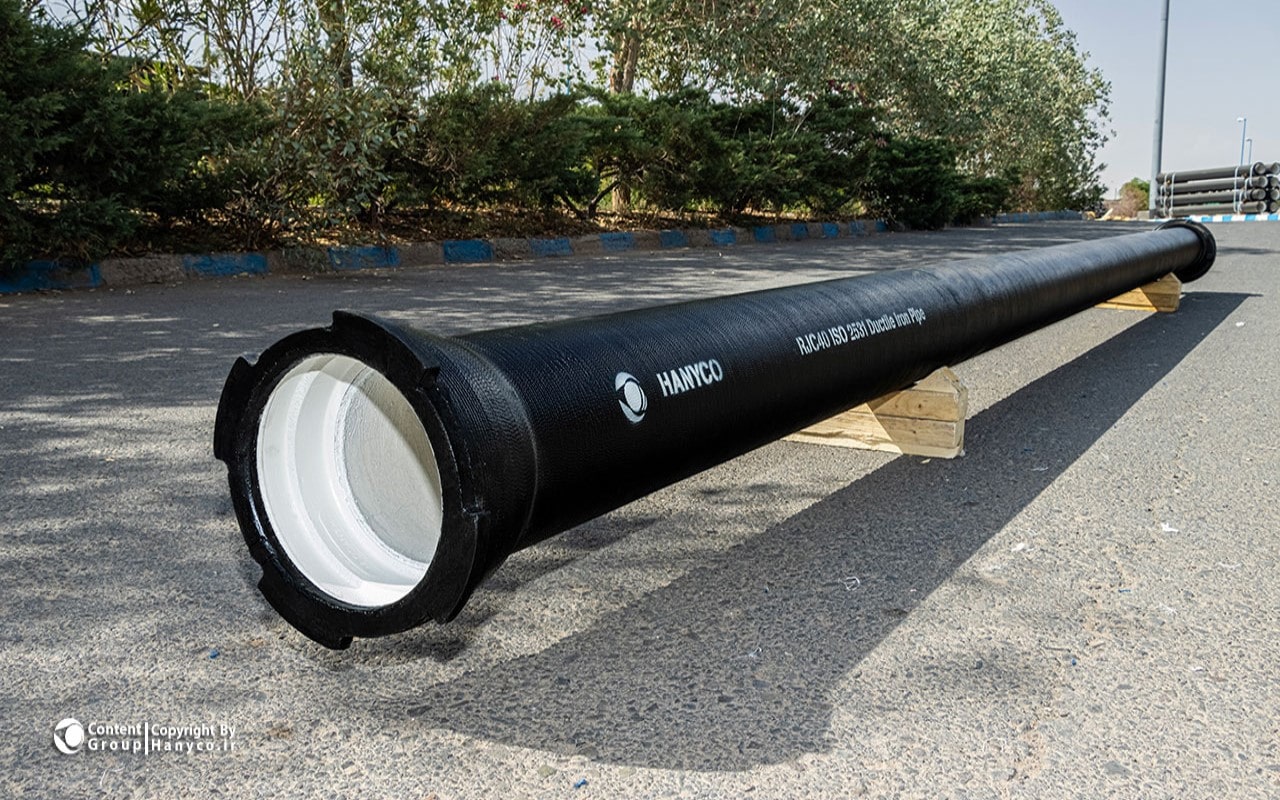

Ductile iron pipe with resistant joint (R.J.Pipe)/Image1-Hanyco

Standards

Ductile iron pipe is designed in accordance with ISO 16134, and the connection is tested according to ISO 10804.
External coatings are applied per ISO 8179, and internal linings follow ISO 4179 and EN 598.
The rubber gasket sealing is similar to the Tyton joint and complies with ISO 4633 and EN 681 standards.

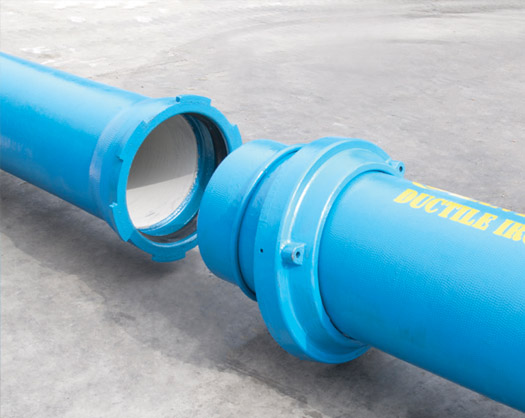

Ductile iron pipe with resistant joint (R.J.Pipe)/Image2-Hanyco

Applications

Suitable for seismic zones and unstable soils, without the need for concrete blocks at the joint.
Ideal for trenchless application systems, especially horizontal directional drilling.

Advantages

Allows for axial displacement and angular deflection with complete sealing
Quick and easy installation without bolts or nuts
High resistance to hydraulic forces

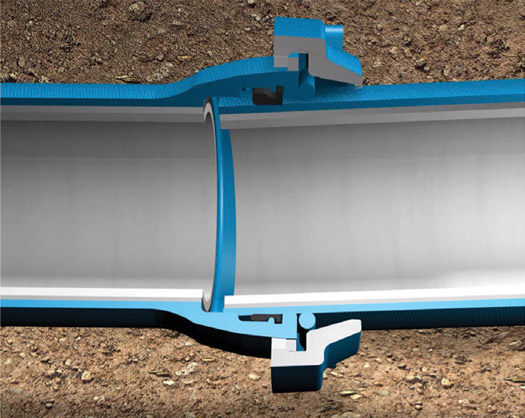

Ductile iron pipe with resistant joint (R.J.Pipe)/Image3-Hanyco

Dimensions and Weights Specifications of R.J.Pipes According to ISO 2531 Standard

R.J. Pipes according to ISO 2531 standard: 1998 K Class

DN	External Diameter (DE)	Pipe Length (L)	Socket Length (P)	Nominal Thickness (e)	Pipe Weight with Internal Cement and External Coatings	Gland External Diameter (D)	Gland Weight	Gland Width (t)	Pipe Weight with Internal Cement and External Coatings and Gland
DN	(mm)	(m)	(mm)	(mm)	kg	(mm)	kg	(mm)	kg
80	98	6	84	6	87	207	7	83	94
100	118	6	88	6	107	229	8	86	115
125	144	6	91	6	132	256	9	87	142
150	170	6	94	6	158	287	11	94	169
200	222	6	100	6.3	217	347	15	94	233
250	274	6	105	6.8	287	405	20	97	307
300	326	6	110	7.2	363	463	27	101	390
350	378	6	110	7.7	476	518	35	101	511
400	429	6	110	8.1	568	574	36	104	605
450	480	6	120	8.6	670	632	45	104	716
500	532	6	120	9	775	690	55	108	831
600	635	6	120	9.9	1010	810	73	109	1083
700	738	6	150	10.8	1302	932	111	128	1413
800	842	6	160	11.7	1600	1050	147	140	1747
900	945	6	175	12.6	1942	1172	185	164	2127

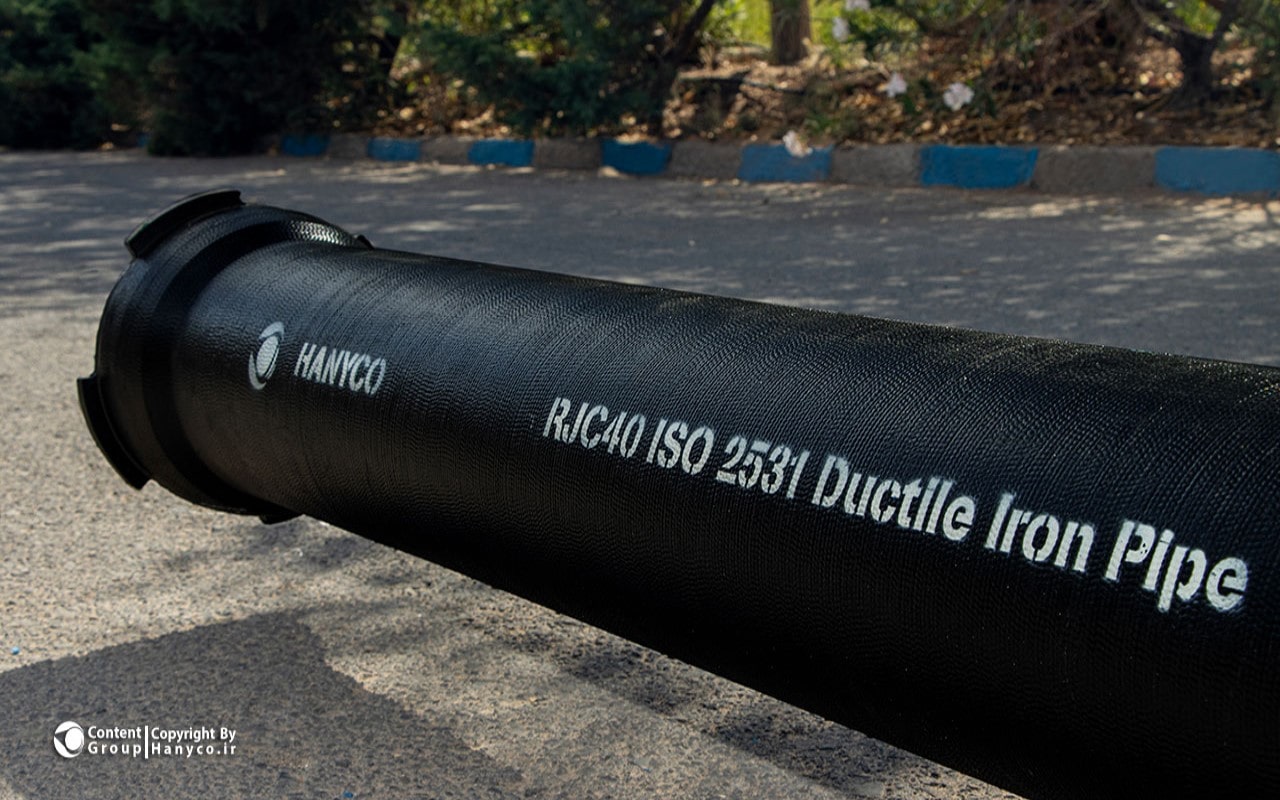

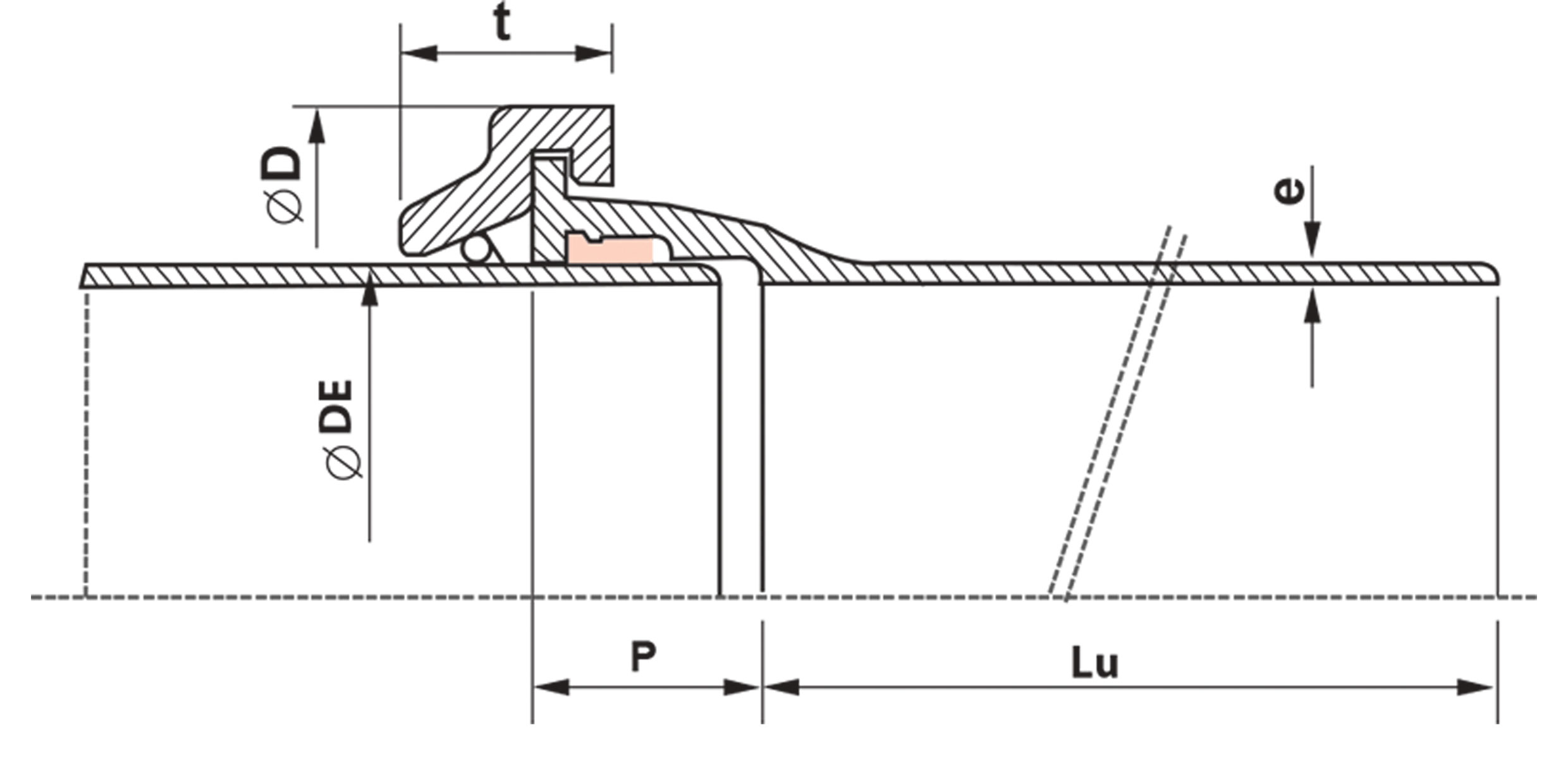

Ductile iron pipe with resistant joint (R.J.Pipe)/Image4-Hanyco

R.J. Pipes according to ISO 2531 standard: 2009 C Class

DN	External Diameter (DE)	Preferred Pressure Class	Pipe Length (L)	Socket Length (P)	Nominal Thickness (e)	Pipe Weight with Internal Cement and External Coatings	Gland External Diameter (D)	Gland Weight	Gland Width (t)	Pipe Weight with Internal Cement and External Coatings and Gland
DN	(mm)	(bar)	(m)	(mm)	(mm)	kg	(mm)	kg	(mm)	kg
80	98	40	6	84	4.4	72	207	7	83	79
100	118	40	6	88	4.4	88	229	8	86	96
125	144	40	6	91	4.5	110	256	9	87	119
150	170	40	6	94	4.5	131	287	11	94	142
200	222	40	6	100	4.7	180	347	15	94	195
250	274	40	6	105	5.5	251	405	20	97	271
300	326	40	6	110	6.2	328	463	27	101	355
350	378	30	6	110	6.3	421	518	35	101	456
400	429	30	6	110	6.5	495	574	36	104	531
450	480	30	6	120	6.9	586	632	45	104	631
500	532	30	6	120	7.5	690	690	55	108	754
600	635	30	6	120	8.7	928	810	73	109	1001
700	738	25	6	150	8.8	1145	932	111	128	1256
800	842	25	6	160	9.6	1404	1050	147	140	1551
900	945	25	6	175	10.1	1642	1172	185	164	1827

All dimensions, except for pipe length, are in millimeters and weights are in kilograms. Dimensions and weights are provided without considering tolerances. All weights are calculated based on the preferred pressure class. For non-preferred pressure classes, please contact Hanyco technical experts. Cement thickness for various sizes is similar to that of Push-on joint (Tyton) pipes.

Other Important Specifications are as Follows Tables:

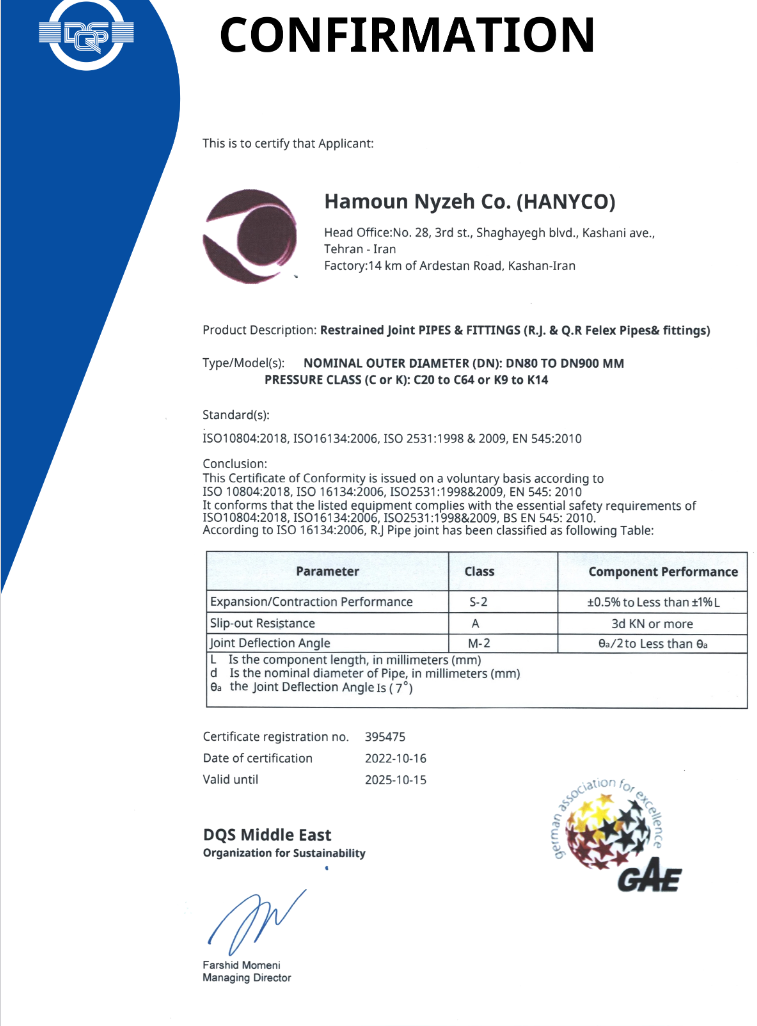

arthquake-Resistant DI Pipe, R.J. Pipe/standard certificate1-Hanyco

Parameter	Slip-out resistance	Expansion/ contraction performance	Joint deflection angle
Parameter	A	S_2	M_2
Performance	3d KN or more	±0.5% to less than ±1% of L	4 to less than 8 degree

Deflection angle:

DN (mm)	80-400	450-900
Joint deflection angle θ (degree)	8	7

Earthquake-Resistant DI Pipe, R.J. Pipe/standard certificate2-Hanyco
