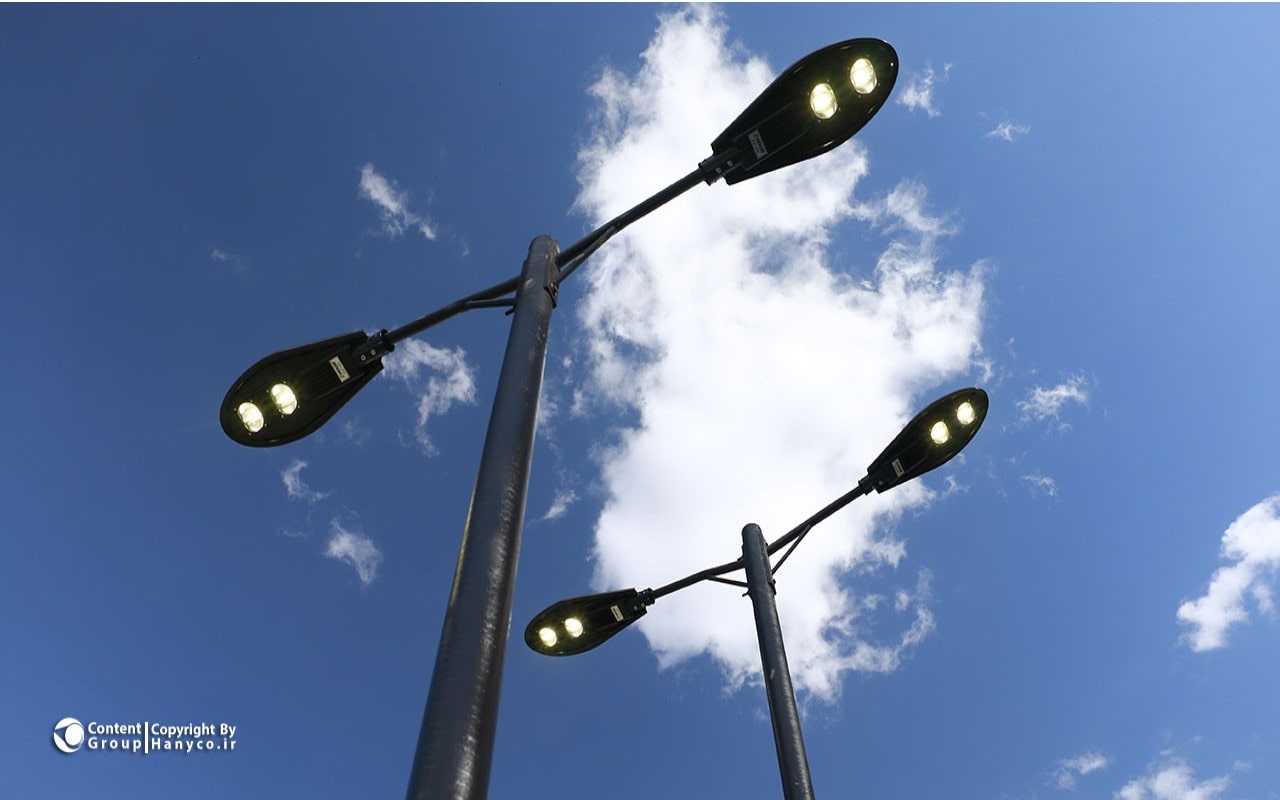

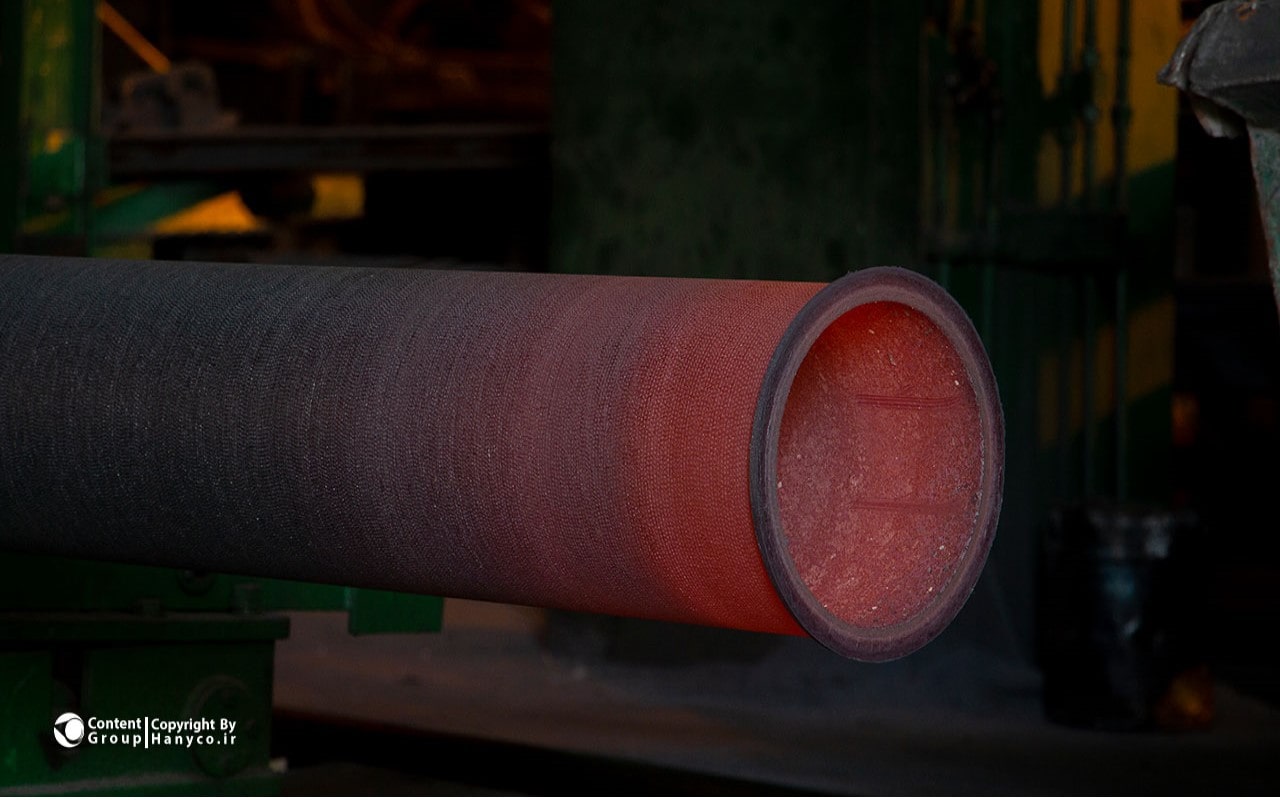

Ductile Iron Lighting Pole

Ductile iron lighting poles, ranging from 1 to 12 meters in height, are Hanyco's latest product. In addition to their beautiful appearance and wide range of colors, these poles are durable and suitable for harsh and corrosive environments. Ductile iron lighting poles can be installed in two ways: direct burial and foundation-mounted.

Advantages of Ductile Iron Lighting Pole

Long lifespan and usability in harsh weather conditions due to the unique corrosion resistance of ductile iron.
Beautiful appearance and a wide range of colors.
Engineering design conforming to finite element software simulations, international standards, and performance tests.
Easy installation and transfer (frame and body can be transported separately).
Environmentally friendly and recyclable product.
Strong resistance to corrosion due to various coatings, including zinc coating and polyurethane paint on the pole body.
Integrated and uniform cylindrical shape of the body.
Can be installed in two ways: on a foundation or by direct burial.

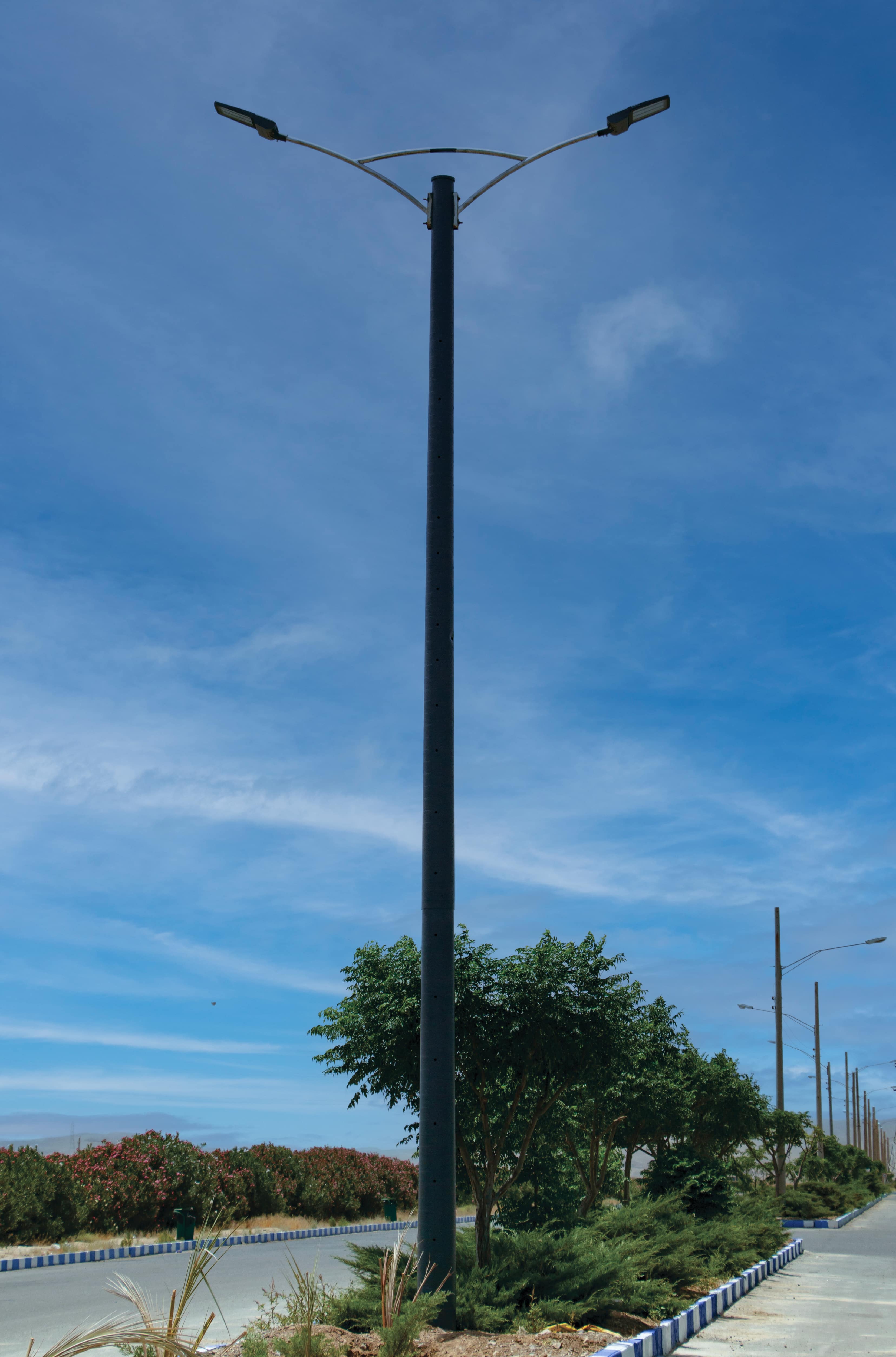

1 to 12 Meters Ductile Iron Lighting Poles

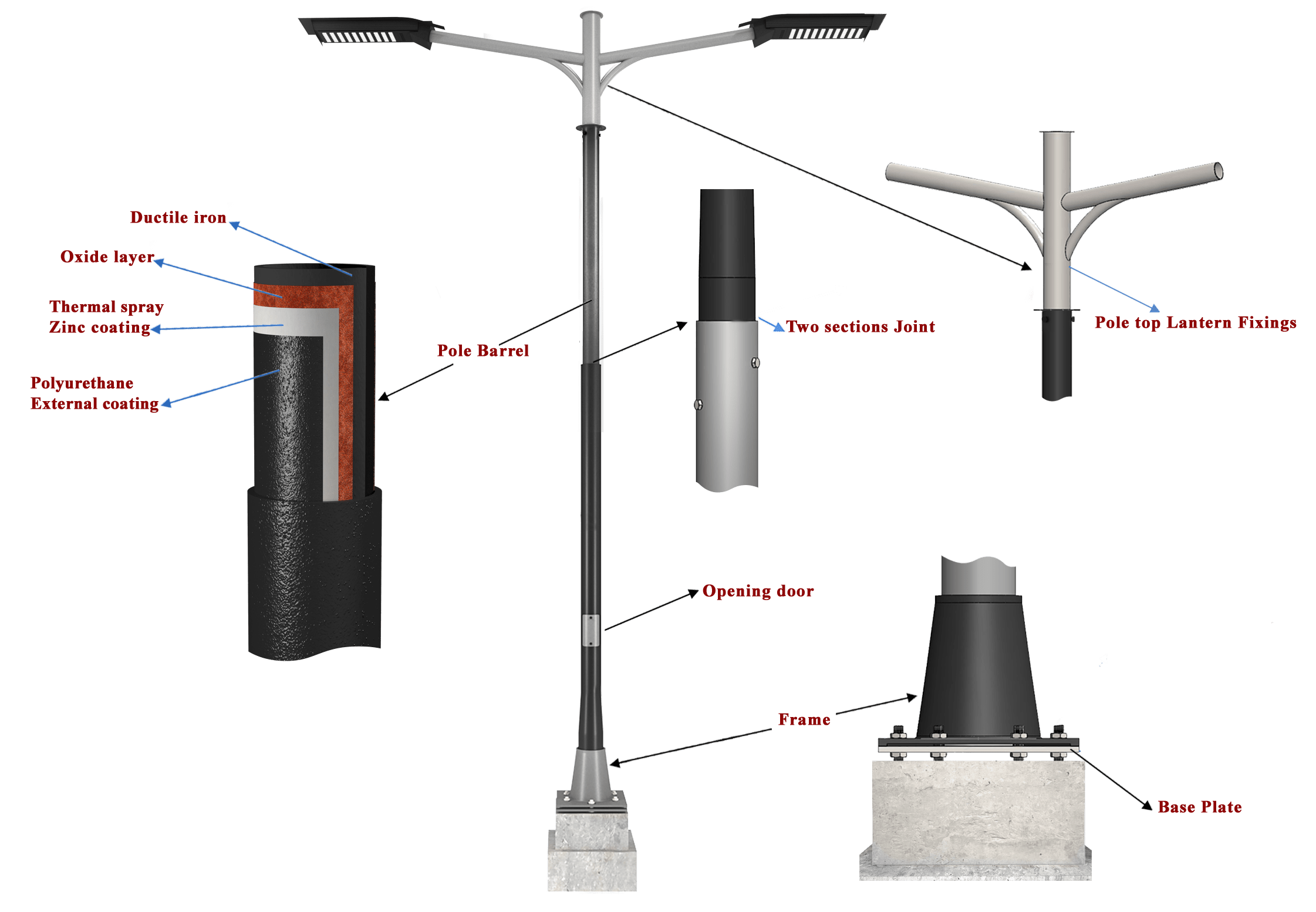

Components of Ductile Iron Lighting Pole

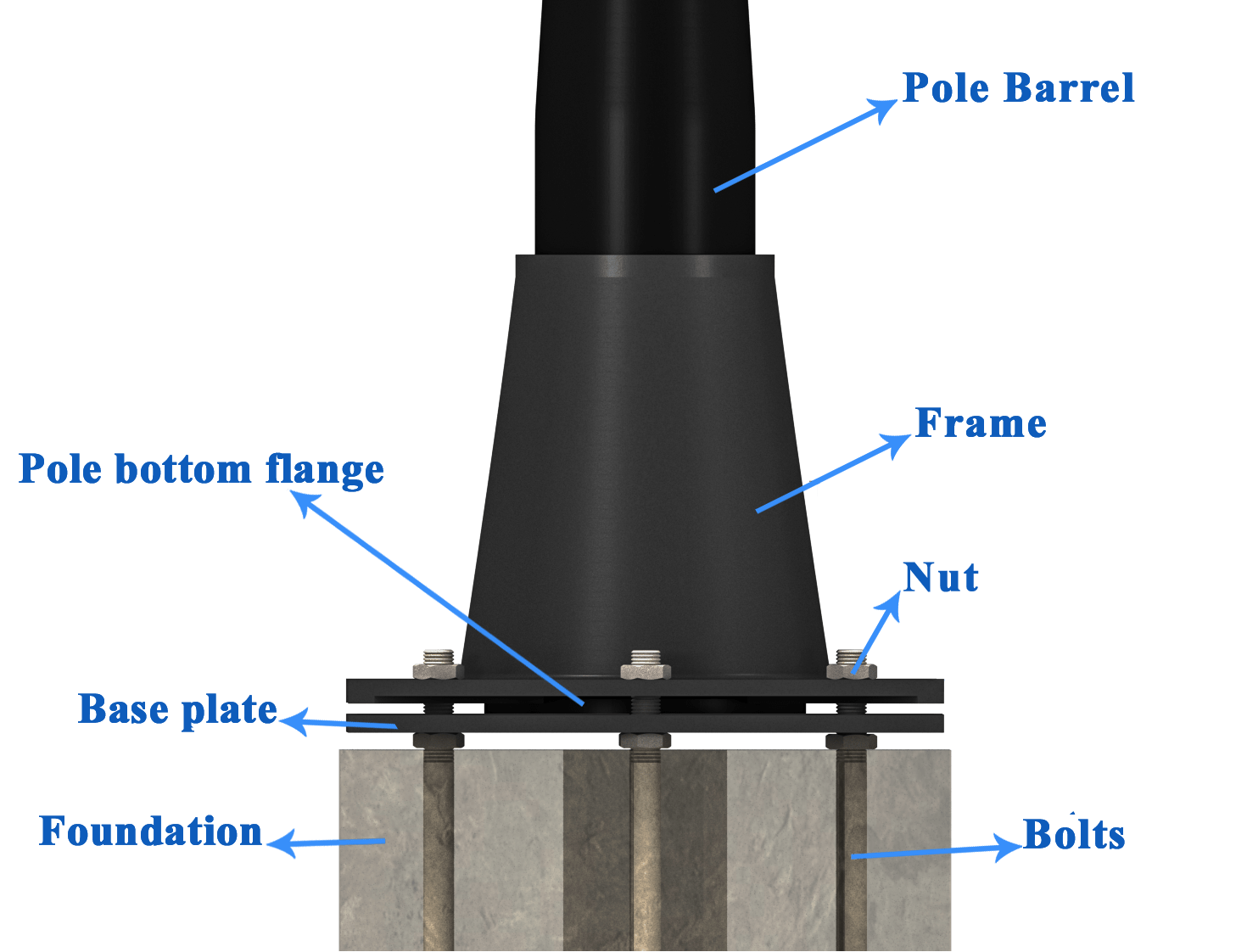

Lighting Pole Installation Mechanism on Foundation

Step 1: The base plate is leveled by adjusting the lower nuts.
Step 2: The lower flange of the pole tube is placed between the base plate and the frame.
Step 3: The upper nuts and washers are tightened to level the pole tube.

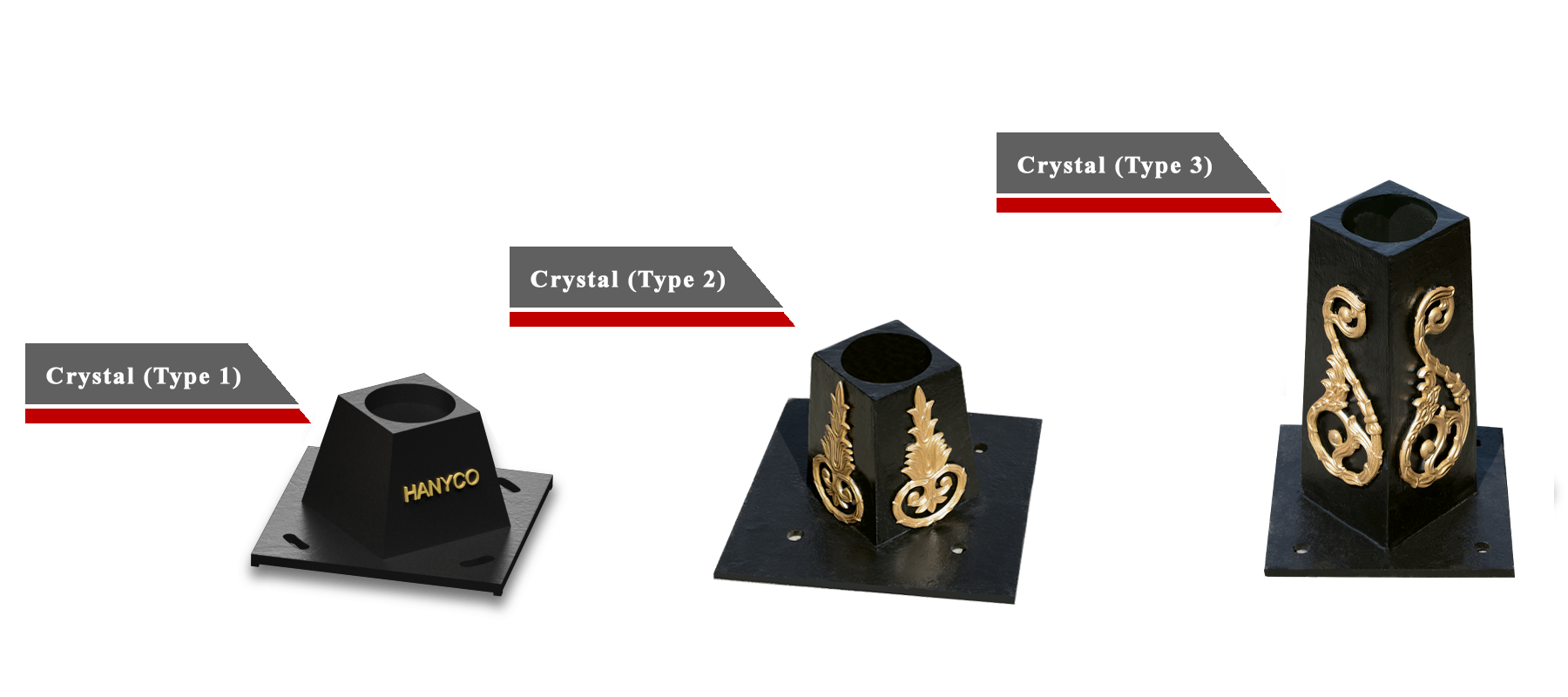

Frames

Frame Type	Height	No. of Holes	Approximate Weight	Installation Plate Dimensions	Suitable for
Frame Type	(mm)	-	(kg)	(mm)	-
Crystal (Type1)	125	4	20	400×400	1 to 3 m
Crystal (Type2)	257	4	25	400×400	3 to 5 m
Crystal (Type3)	410	4	31	400×400	4 to 6 m

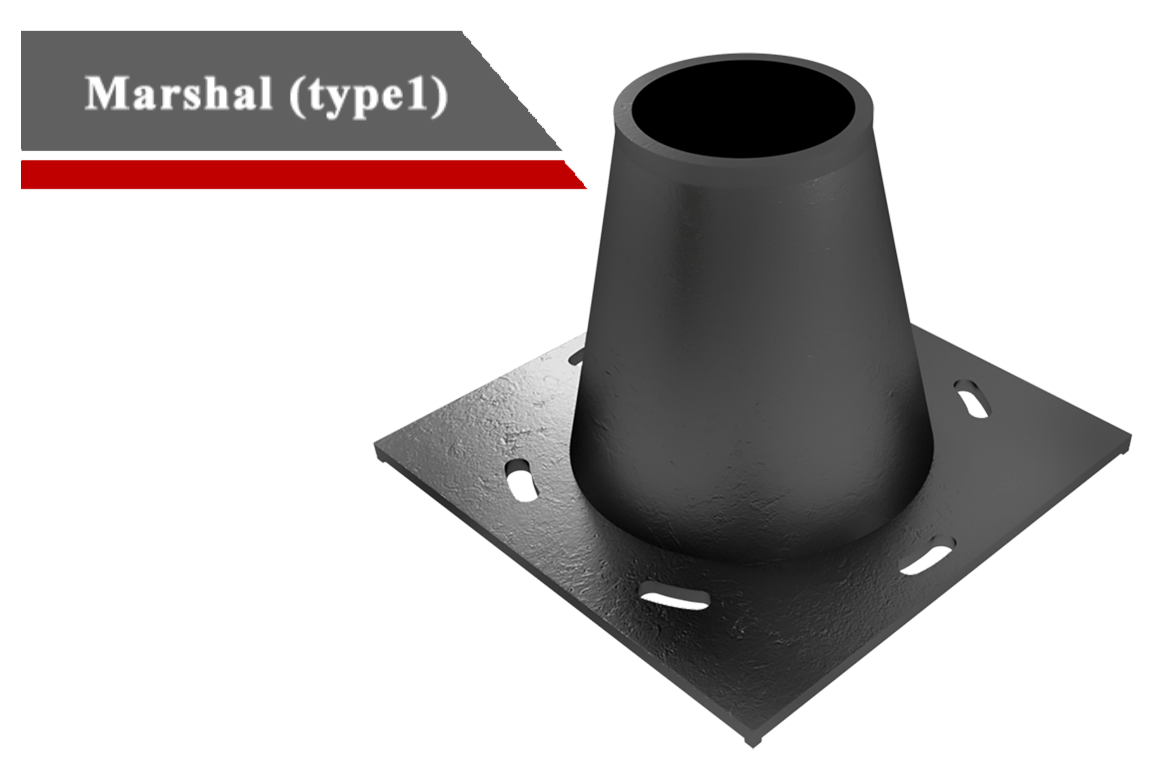

Marshal (Type1)	150	6(4)	26	400×400	1 to 6 m

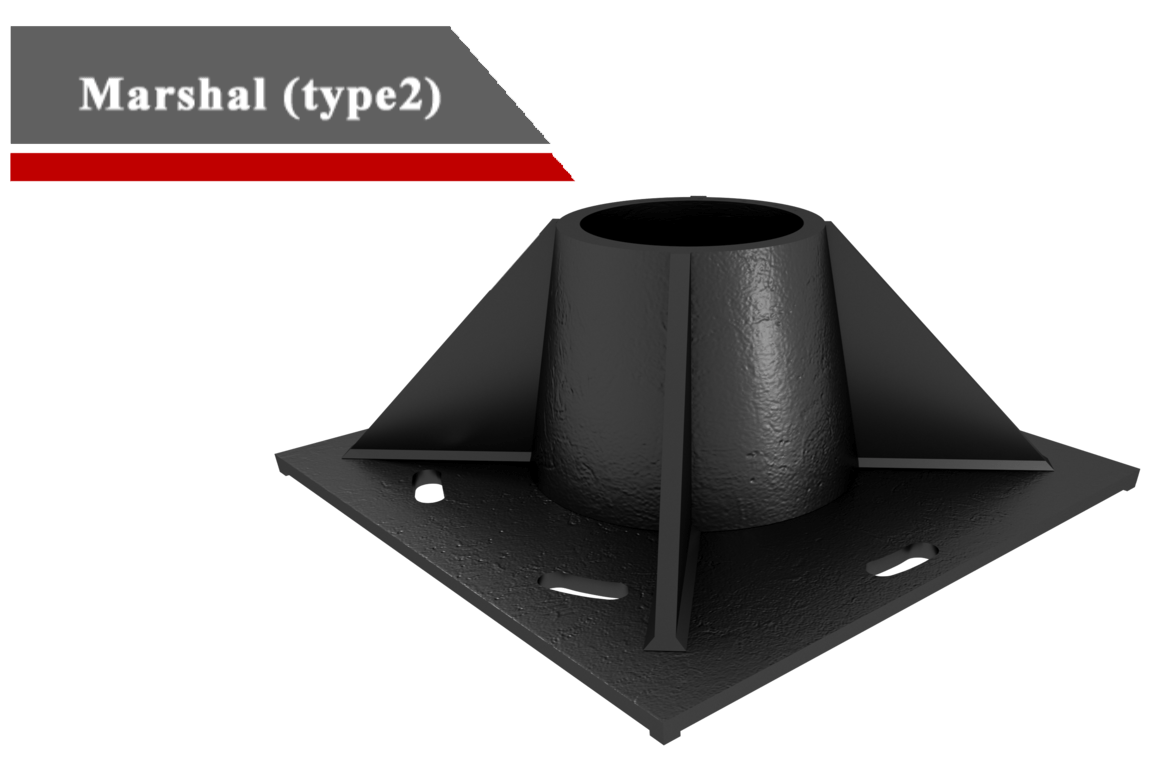

Marshal (Type2)	300	6(4)	23	400×400	7 to 12 m

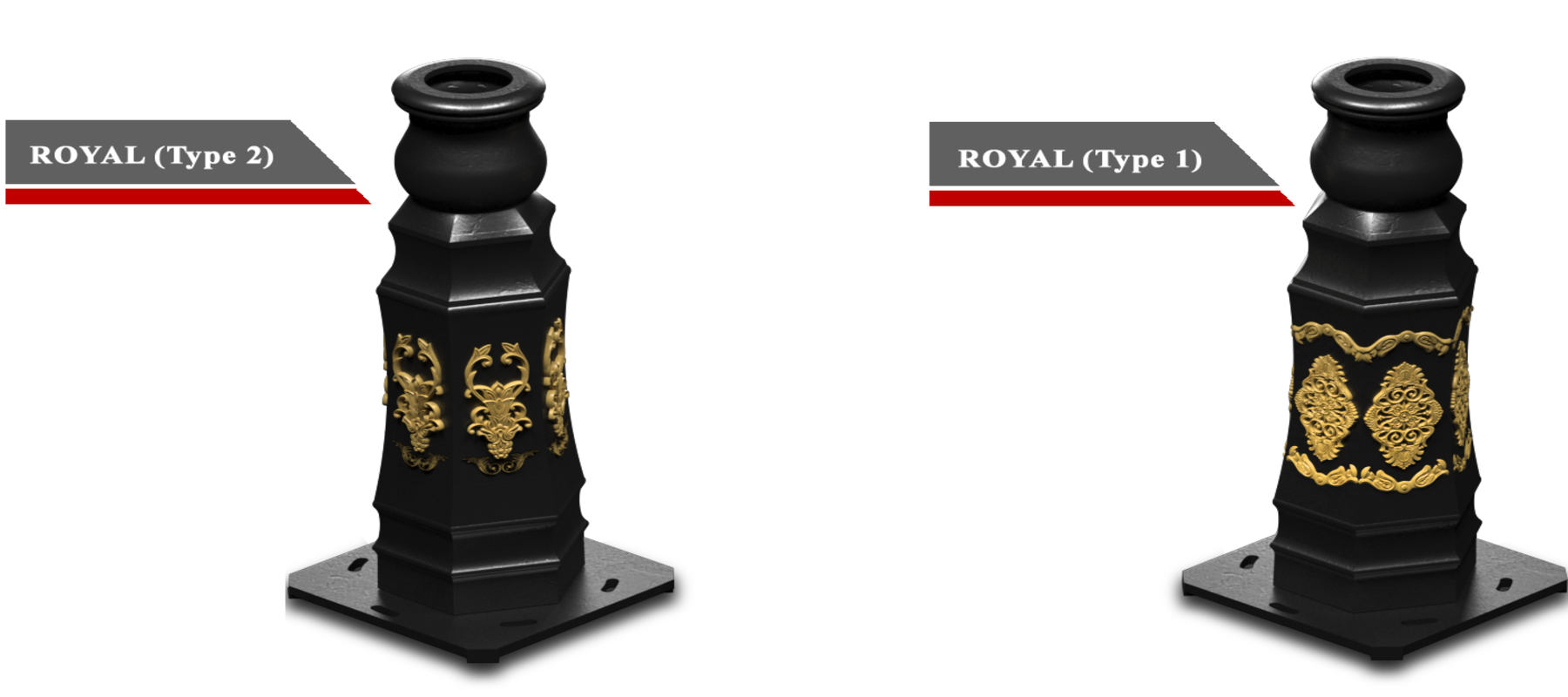

Royal (Type1&2)	900	6(4)	48	400×400	7 to 12 m

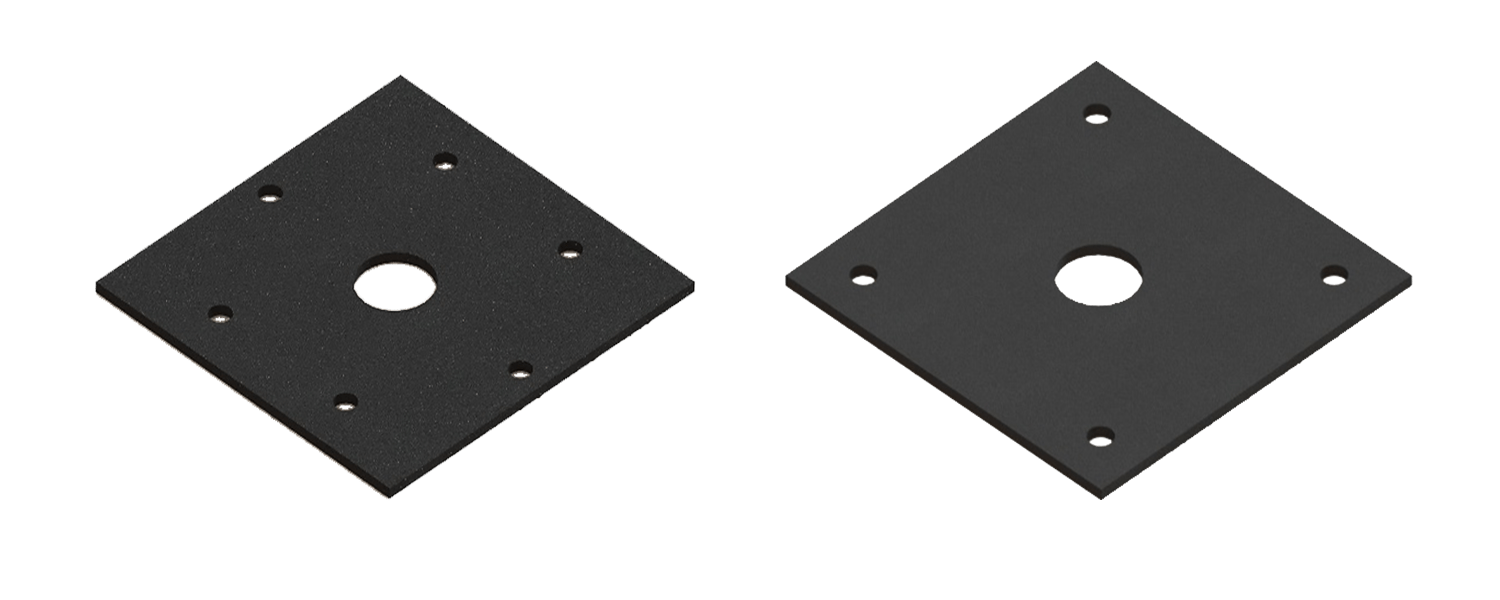

Base Plate

The most important application of the base plate is to level the pole and the lower flange located between the base plate and the frame. The base plate can be provided with 4 or 6 holes. In addition, the dimensions of the base plate can be changed upon request. Custom base plates are available based on customer needs.

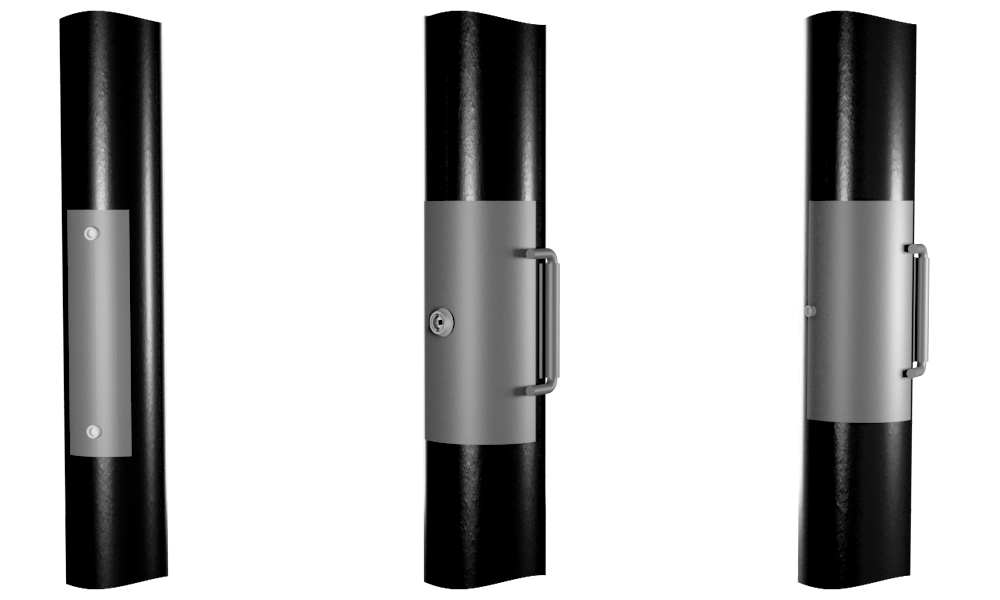

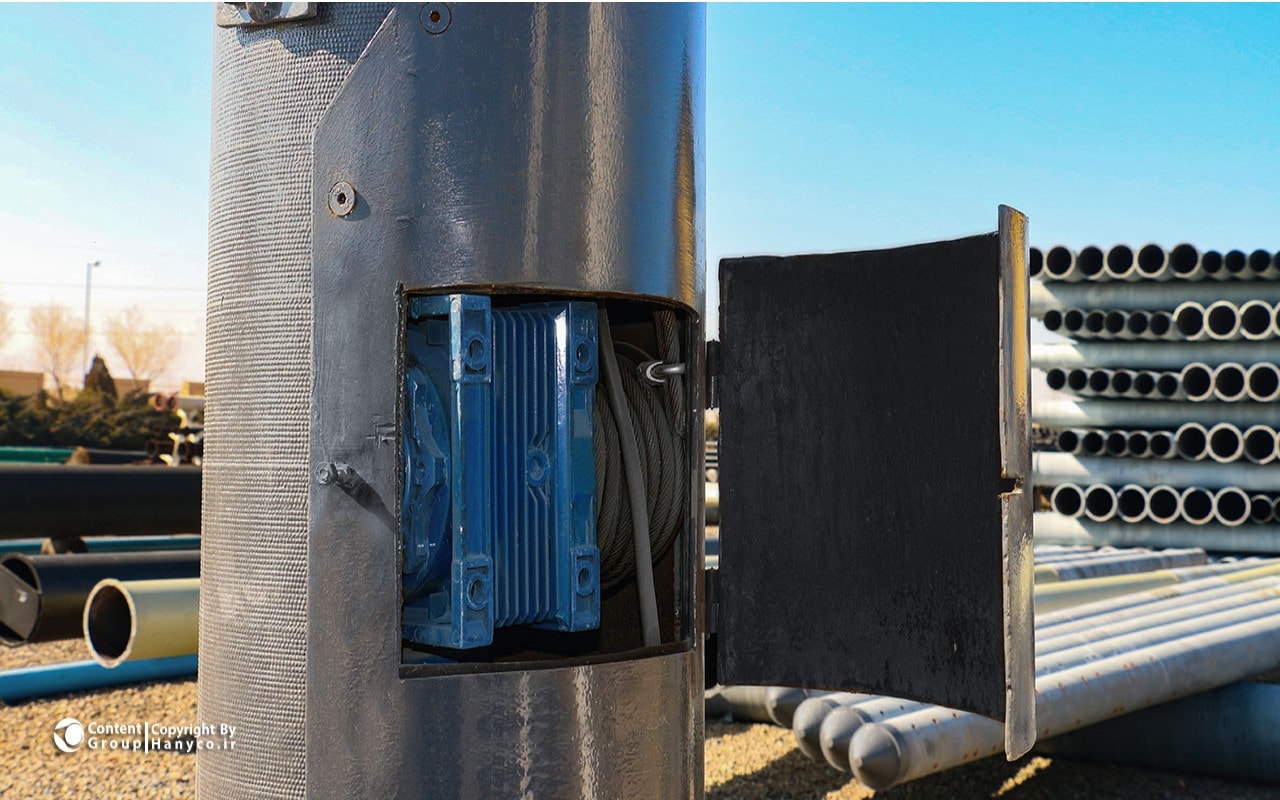

Door Opening

The dimension of the door opening for 1 to 6 m poles is 75200 mm and it is 85200 mm for 7 to 12 m poles. Three types of doors are available for lighting pole door openings. Hinged door with two type of locking segment and simple type door. A normal person cannot easily open the opening door of ductile iron lighting poles. The level of protection is IP34 for all types of door openings.

Technical Information

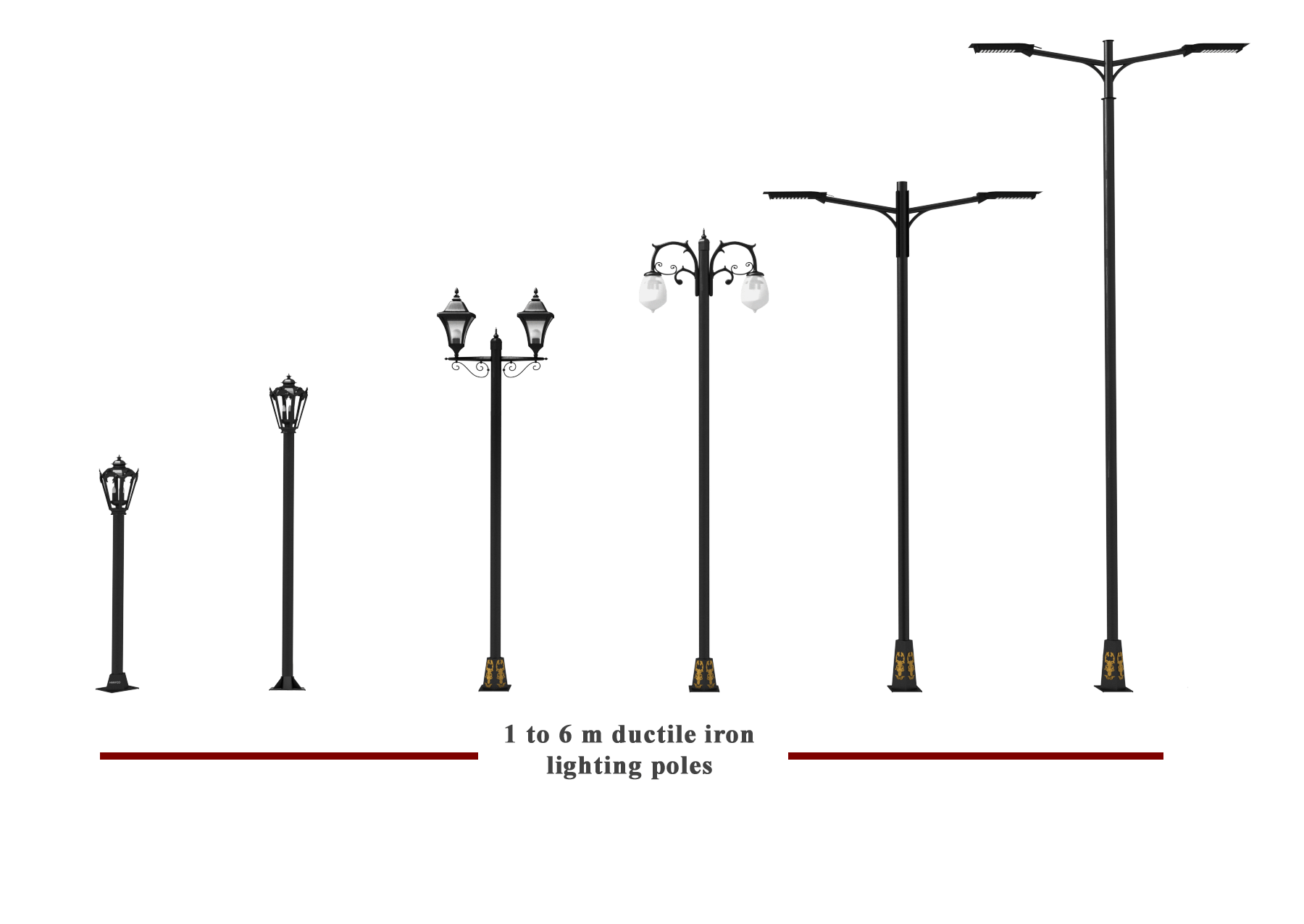

1M to 6M Pole

Height	Nominal Thickness	External Diameter	Internal Diameter	Weight	Top Cap Weight	Frame Type	Pole Plate Dimension	Dimension of the Door Opening
(m)	(mm)	(mm)	(mm)	(kg)	(kg)	-	(mm)	(mm)
1	5	118	108	15	0.5	Crystal (Type 1) Marshal (Type 2)	400×400	200x75
2	5	118	108	27	0.5	Crystal (Type 1) Marshal (Type 2)	400×400	200x75
3	5	118	108	40	0.5	Crystal (Type 1&2) Marshal (Type 2)	400×400	200x75
4	5	118	108	53	0.5	Crystal (Type 2&3) Marshal (Type 2)	400×400	200x75
5	5	118	108	66	0.5	Crystal (Type 2&3) Marshal (Type 2)	400×400	200x75
6	5	118	108	79	0.5	Crystal (Type 2&3) Marshal (Type 2)	400×400	200x75

- Installation plates with dimensions of 300 x 300 can be produced exclusively.
- The diameters provided are nominal and the poles diameter tolerance is -3 to +1.
- The weight tolerance of the poles is 10%.

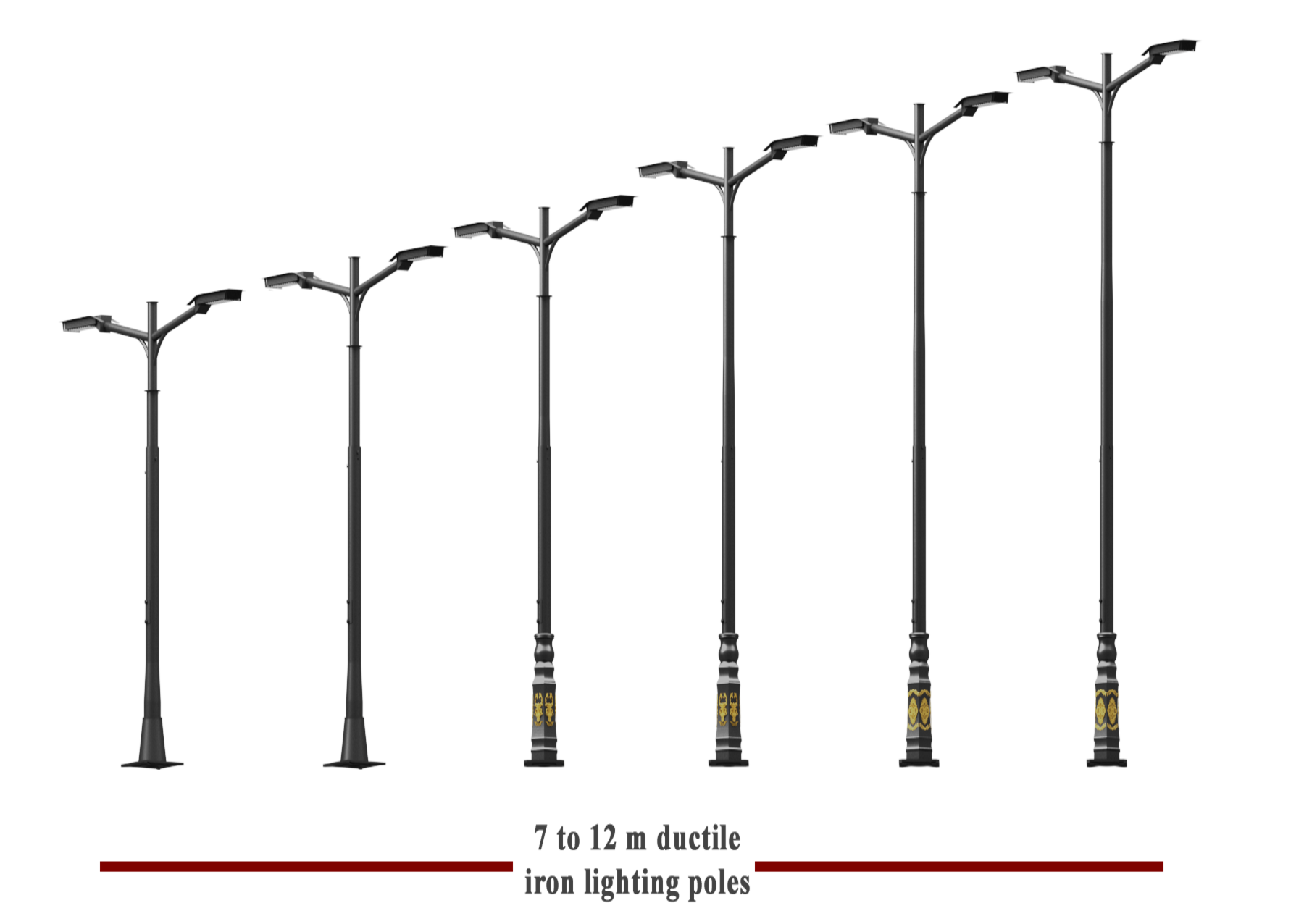

7M to 12M Pole

Height	Top Section Height	Bottom Section Height	Nominal Thickness	External Diameter of Top Section	External Diameter of Bottom Section	Weight of Top Section	Weight of Bottom Section	Total Weight	Top Cap Weight	Dimension of the Door Opening	Overlap Size	Frame Type
(m)	(m)	(m)	(mm)	(mm)	(mm)	(kg)	(Kg)	(Kg)	(Kg)	(mm)	(mm)	-
7	1	6	5	118	125	18	90	108	0.5	200x85	300	Royal (Type 1&2) Marshal (Type 1)
8	2	6	5	118	125	31	90	121	0.5	200x85	300	Royal (Type 1&2) Marshal (Type 1)
9	3	6	5	118	125	44	90	134	0.5	200x85	300	Royal (Type 1&2) Marshal (Type 1)
10	4	6	5	118	125	57	90	147	0.5	200x85	300	Royal (Type 1&2) Marshal (Type 1)
11	5	6	5	118	125	70	90	160	0.5	200x85	300	Royal (Type 1&2) Marshal (Type 1)
12	6	6	5	118	125	79	90	169	0.5	200x85	300	Royal (Type 1&2) Marshal (Type 1)

- The diameters provided are nominal and the poles diameter tolerance is -3 to +1.
- The weight tolerance of the poles is 10%.

Other Street Lighting Products (High Mast, Flag Pole and Camera Pole)

In addition to lighting poles, Hanyco offers various other equipment such as high masts for use in parks, parking lots, factories, stadiums, flag poles of various heights, camera poles, traffic signs and telecommunications equipment. Specifications for products available in this group are currently as follows.

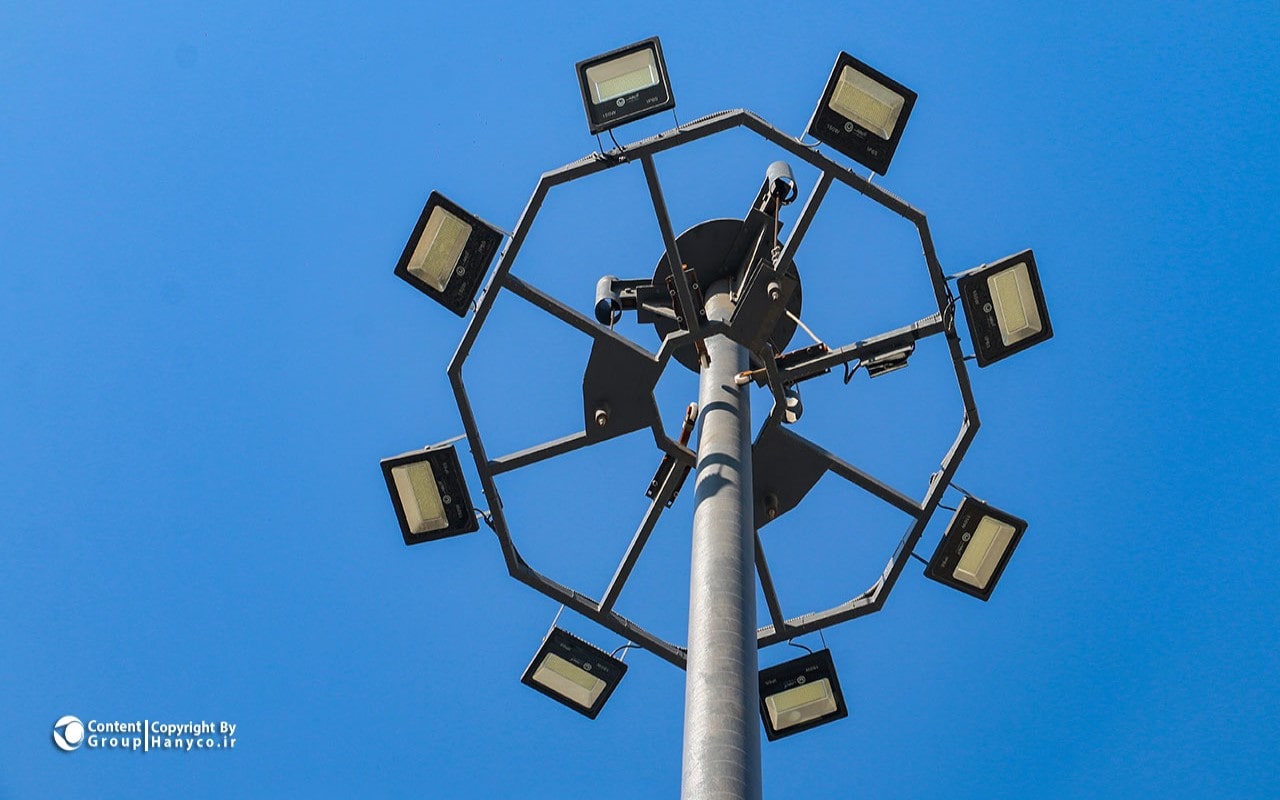

Ductile Iron Pipe High Mast

Height	No. of Sections	Bottom Diameter	Top Diameter	Nominal Thickness	Pole Weight	Max Diameter of Basket	*Weight of Basket	Basket Type	Elevator Type	Installation Mode	Buried Depth	Height from Ground Level	Door Opening Dimension
-	-	(mm)	(mm)	(mm)	(kg)	(mm)	(kg)	-	-	-	(mm)	(m)	(mm)
18	3	421.2	187.9	5	989	1930	191	Moveable	motor	burial	2400	15.5	800×300

-This product is offered with zinc coating and polyurethane coating and with color according to customer's request. Also, on the Burial part of these poles, zinc coating, polyurethane coating and Btuman paint coating are applied.
The height, diameter of the basket, lifting system and etc. can be provided in other types and Sizes according to the customer's order
*The approximate weight of the basket along with 8 low-power 150-watt projectors has been calculated, and the weight of each projector is 6.7kg.
-The weight of the basket without the projector is 140 kg.

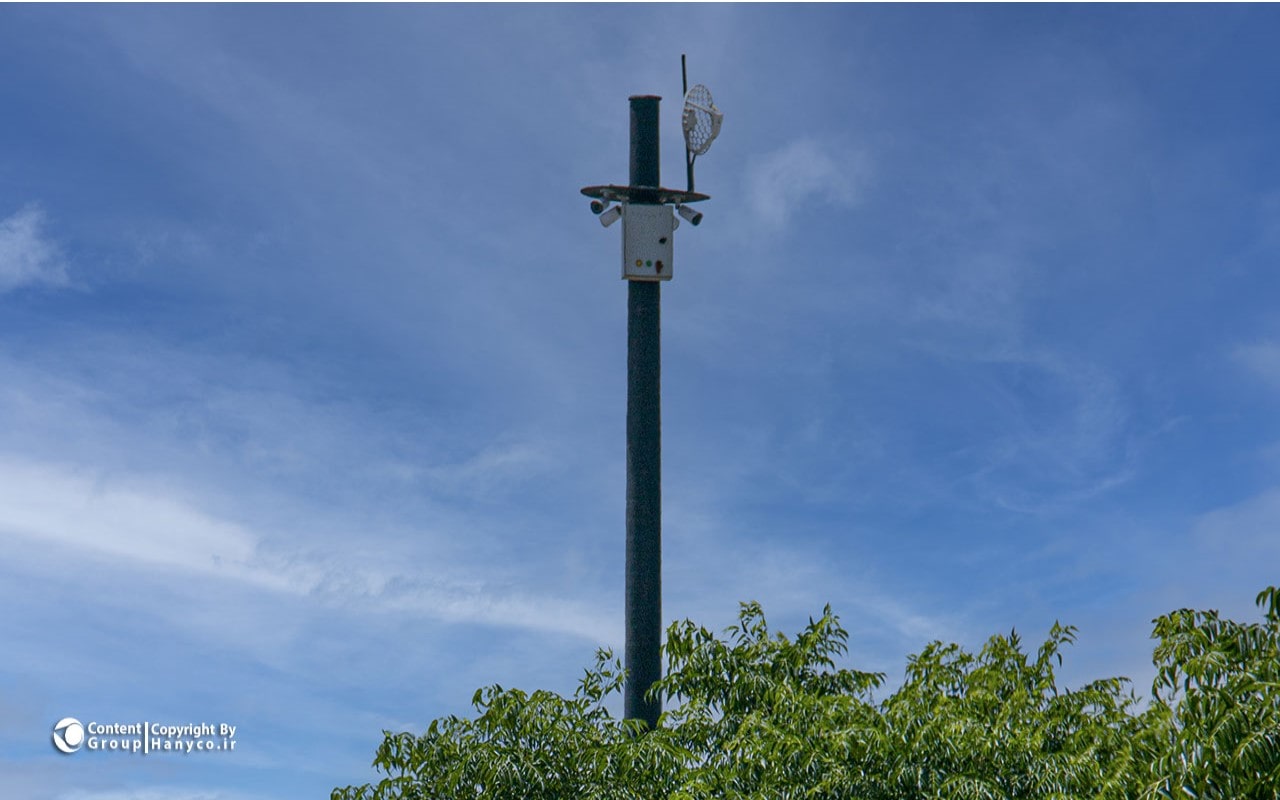

Ductile Iron Camera Pole

Height	No. Sections	Bottom Diameter	Top Diameter	Nominal Thickness	Weight	Installation Mode	Frame Height	Frame Weight	Buried Depth	Height from Ground Level	Base Plate Dimension
(m)	-	(mm)	(mm)	(mm)	(kg)	-	(mm)	(kg)	(mm)	(m)	(mm)
6	1	275	188	5	155	Foundation or burial	900	95	1200	4.8	150×150
12	2	348	188	5	359	Burial	-	-	1800	10.2	-
18	3	421	188	5	675	Burial	-	-	2400	15.5	-

- Other heights are also available. For more information please contact us.

Ductile Iron Flag Pole

Height	No. Sections	Bottom Diameter	Top Diameter	Nominal Thickness	Weight	Elevator Type	Installation Type	Buried Depth	Height from Ground Level
(m)	-	(mm)	(mm)	(mm)	(kg)	-	-	(mm)	(m)
18	3	421	188	5	675	manual	buried	2400	15.5
12	2	348	188	5	359	manual	buried	1800	10.2

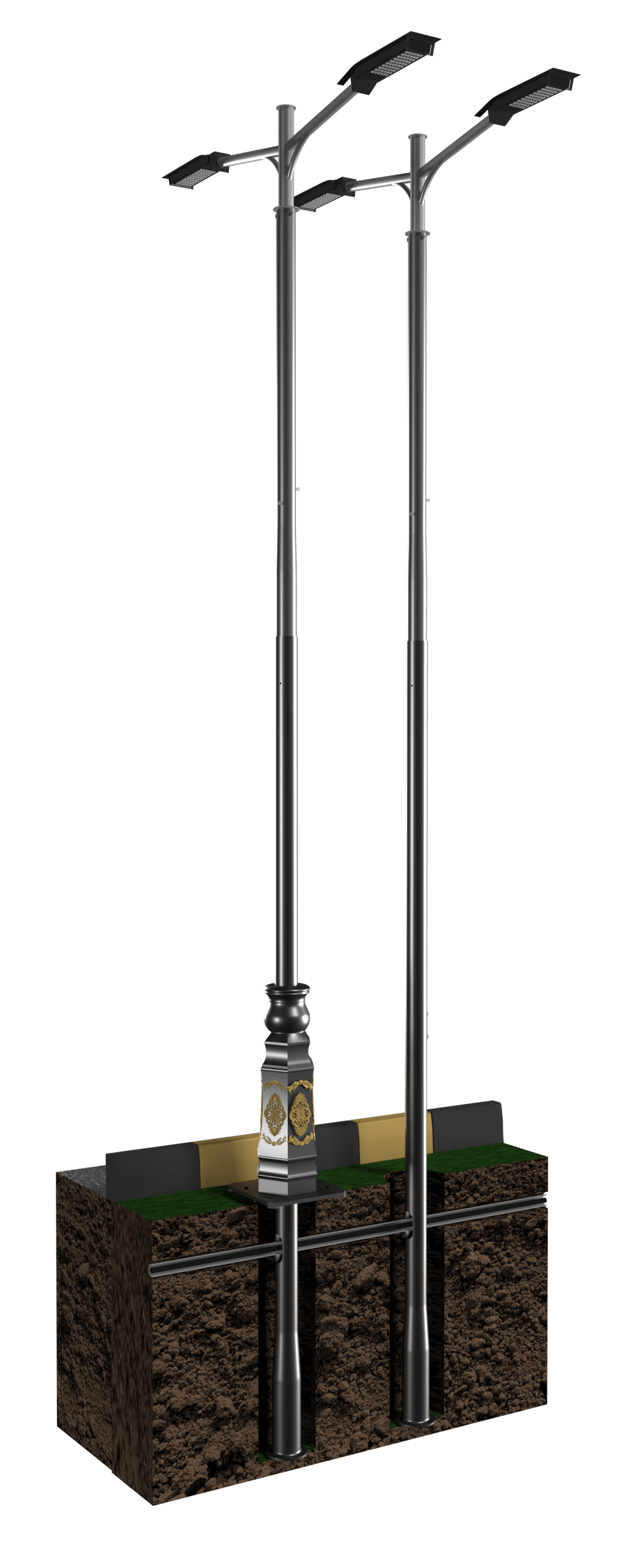

Ductile Iron Lighting Poles in Direct Burial Installation

Another feature of ductile iron lighting poles is the possibility of using them in direct burial installations due to their inherently high corrosion resistance and the strong protective coatings applied to the pole. Various corrosion-resistant exterior coatings are applied to the buried and above-ground surfaces of the lighting poles. Zinc coating and polyurethane paint are applied to the above-ground surface of the lighting poles. In addition, zinc coating, polyurethane paint, and bituminous paint are applied to the buried surface of the lighting poles.

A special cable entry is designed for direct burial lighting poles, enabling end users to use this product effectively. The presence of various protective coatings on the pole body ensures its long life. The advantage of these poles is the absence of a foundation, reduced installation cost and time, as well as acceptable strength.

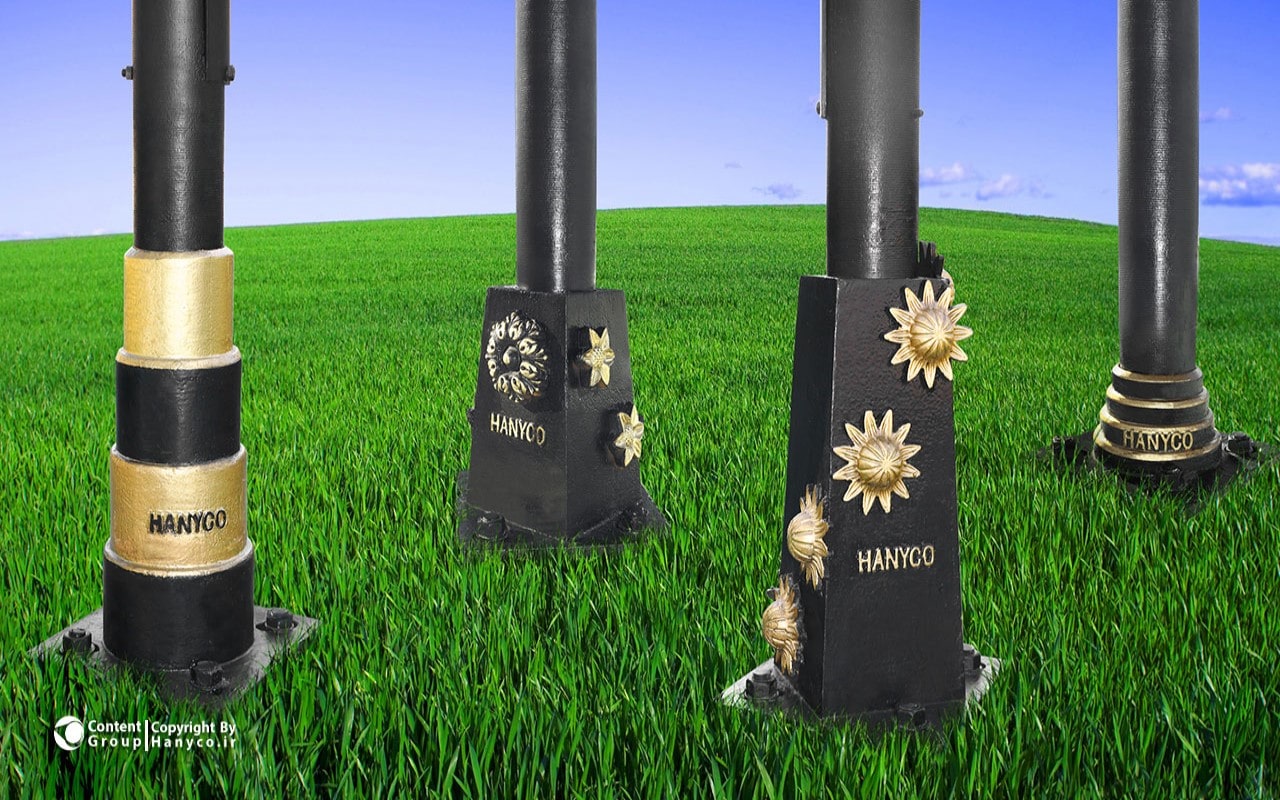

These poles can be produced in two types with and without decorative frames. The decorative frame is added to burial poles only to increase the beauty of the product and does not affect the performance of them. The location of these frames is on the ground and does not need an installation plate. In Aroon company, burial poles with decorative frames can these poles can be produced in two types, with and without a decorative frame.

The decorative frame is only added to the direct burial poles to increase the beauty of the product and does not affect its performance. The location of these frames is on the ground and does not require a mounting plate. At Aroon Company, direct burial poles with decorative frames can be provided in sizes of 6 to 10 meters along with Royal 1, 2, and Marshal 1 frames.

Height of Above Ground	Buried Depth	Total Height	Top Section Height	Bottom Section Height	Top Section Weight	Bottom Section Weight	Total Weight of Pole	Opening Door Dimension	Cable Entry Dimension	Frame Type
(m)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)	(mm)	(m)	-
1	800	1800	1800	0	25	0	25	200×75	150×50	-
2	800	2800	2800	0	37	0	37	200×75	150×50	-
3	1000	4000	4000	0	52	0	52	200×75	150×50	-
4	1000	5000	5000	0	64	0	64	200×75	150×50	-
5	1000	6000	6000	0	77	0	77	200×75	150×50	-
6	1200	7200	1400	6100	19	90	109	200×85	150×50	Marshal 1, Royal 1&2
7	1500	8500	2700	6100	35	90	125	200×85	150×50	Marshal 1, Royal 1&2
8	1500	9500	3700	6100	47	90	137	200×85	150×50	Marshal 1, Royal 1&2
9	1700	10700	4900	6100	62	90	152	200×85	150×50	Marshal 1, Royal 1&2
10	1700	11700	5900	6100	76	90	166	200×85	150×50	Marshal 1, Royal 1&2

-The weight tolerance of the poles is 10%.
-It should be noted that for burial lighting poles that are ordered with a frame, the weight of the desired frame mentioned in this catalog must also be added to the weight declared for the desired burial pole in this table.

Standards

1-BS EN 40-1: “Lighting columns- Part 1: Definitions and terms”, 1992.
2-BS EN 40-2: “Lighting columns- Part 2: General requirements and dimensions”, 2004.
3-BS EN 40-3-1: “Lighting columns- Part 3-1: Design and Verification-Specification for characteristic loads”, 2013.
4-BS EN 40-3-2: “Lighting columns- Part 3-2: Design and Verification-Verification by testing”, 2013.
5-BS EN 40-3-3: “Lighting columns- Part 3-3: Design and verification- Verification by Calculation”, 2013.

standard certificate
