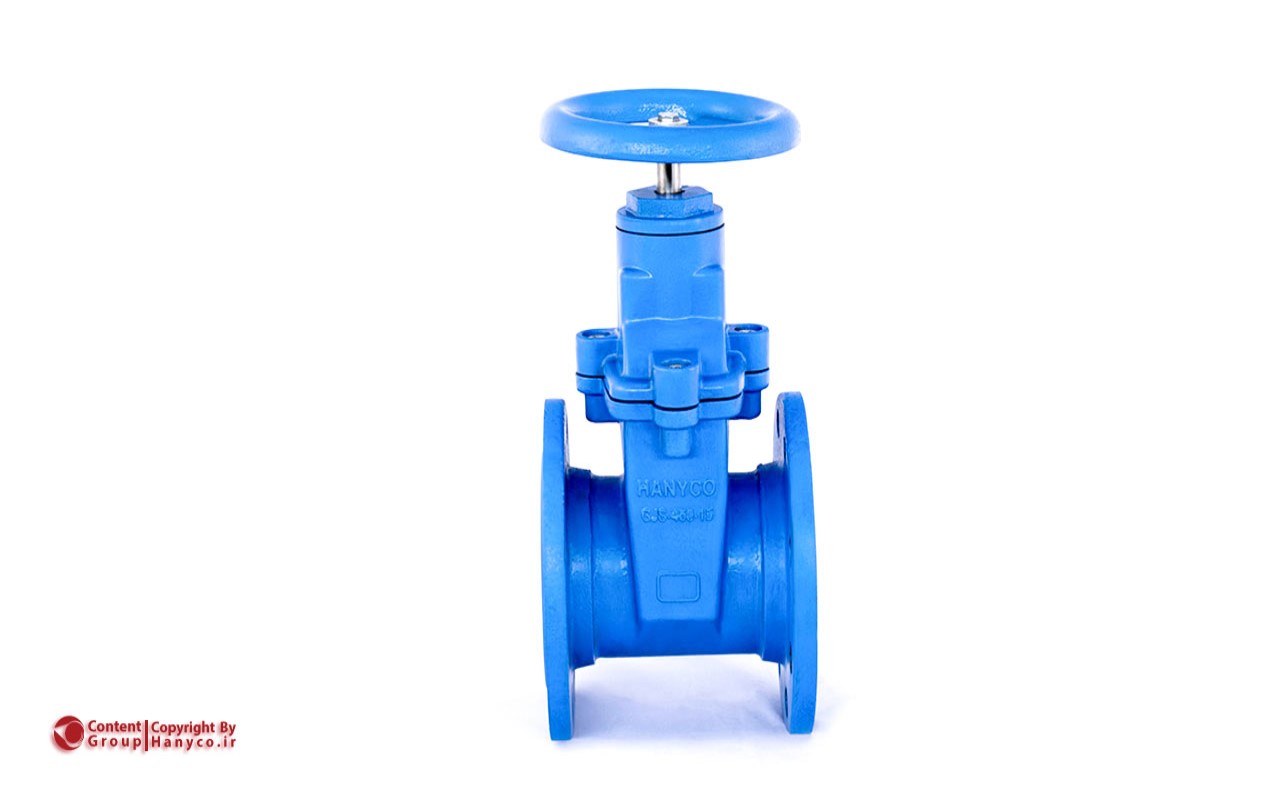

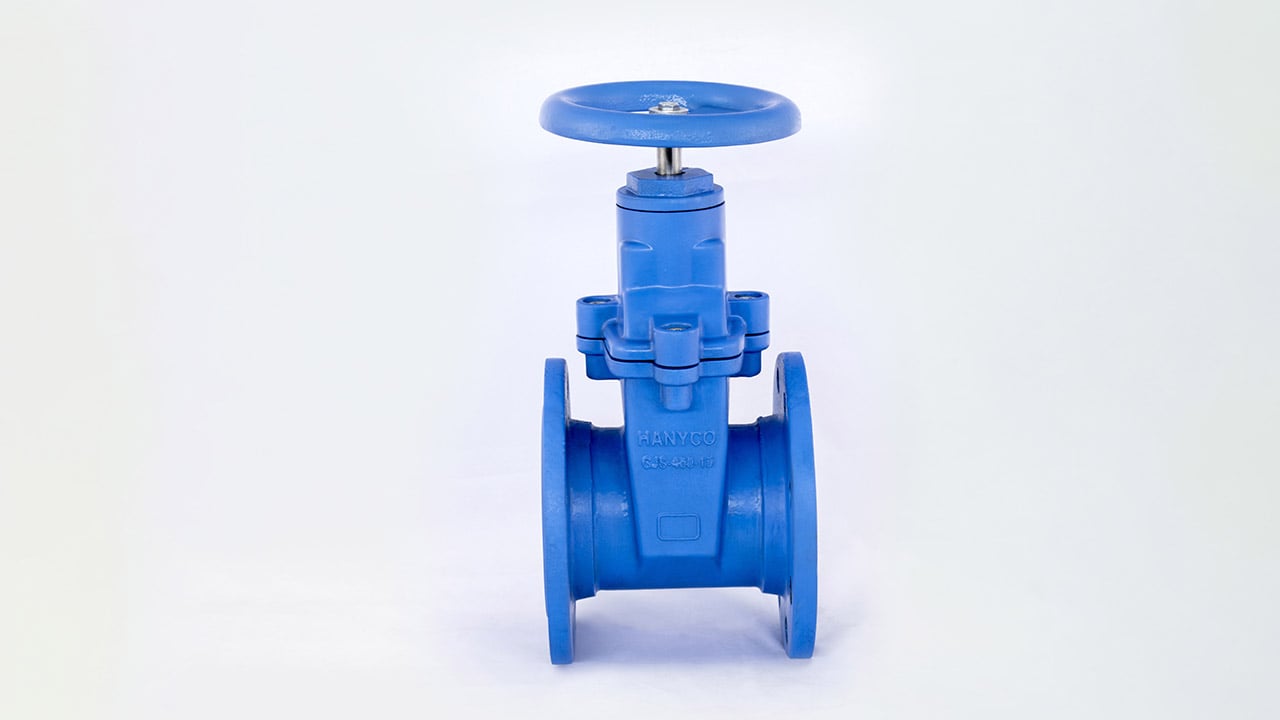

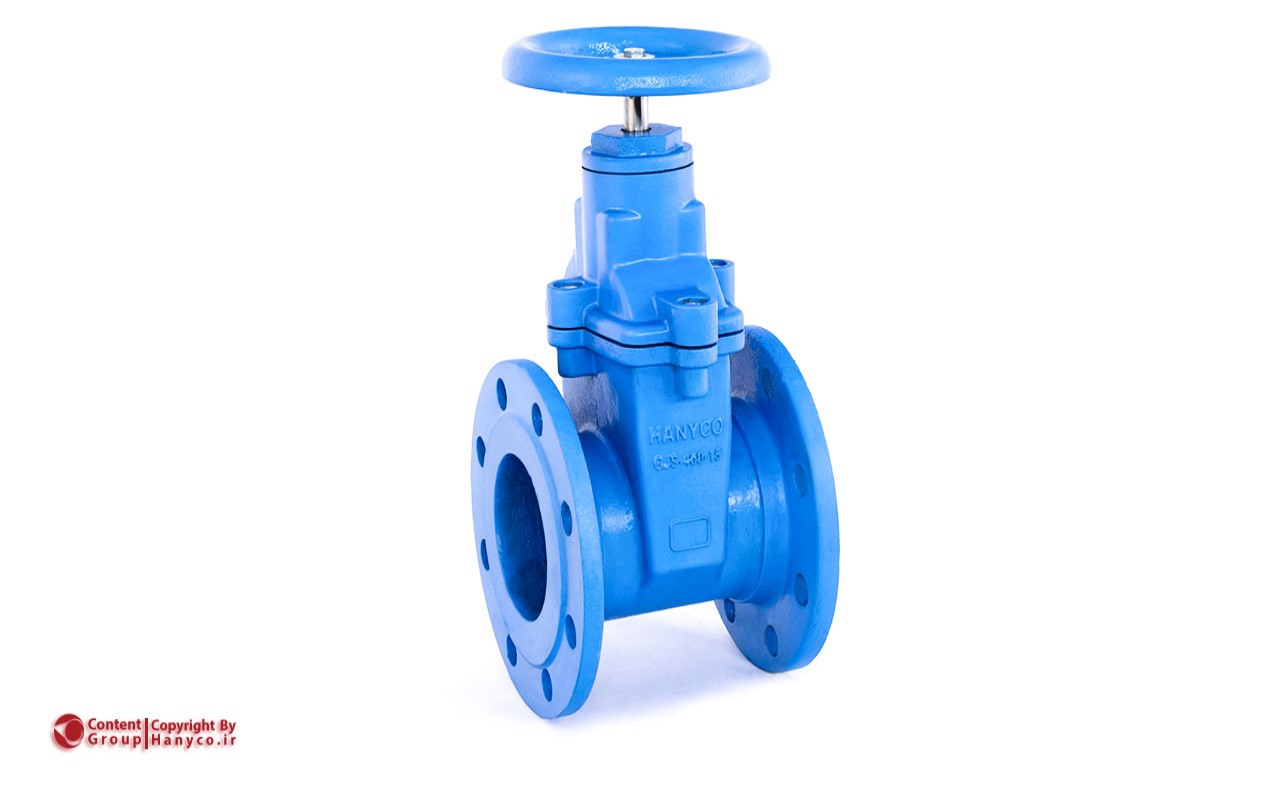

Resilient Sealing Gate Valves

Hamoun Nyzeh Company (HANYCO), a manufacturer of ductile iron pipes and fittings, specializes in producing and supplying pipes and fittings for water and wastewater projects, ranging from DN 80 to DN 1200 (mm), with a nominal production capacity of 120,000 tons per year. HANYCO's latest product is the ductile iron resilient wedge gate valve, featuring the following specifications and manufactured using the "Lost Foam Casting" process on a fully automated production line.

Nominal size DN (50-80-100-200) -- Working pressure PN 10/I6 bar

Applications of Resilient Wedge Gate Valves

The HANYCO butterfly valve is suitable for a wide range of applications, including raw, cooling, and drinking water up to 120°C, as well as air conditioning systems for isolating or regulating water flow. Thanks to the various material options for the disc and valve sealing, specific application requirements can be met without difficulty. The valves are available in nominal sizes from DN50 to DN200, with a working pressure of 10/16 bar. Butterfly valves should not be used as flow controllers in transmission lines; they must be either fully open or fully closed. The valve is designed so that the disc is positioned centrally when open, ensuring optimal flow conditions with minimal pressure drop. This valve is suitable for installation between flanges prepared according to DIN EN 1092-2 and for operating pressures up to 16 bar.

Special Features

• Certified according to the Iranian Standard Mark INSO 3363
• Valve design based on BS EN 1171 standard
• Face-to-face dimensions according to DIN EN 558-1 series I4 (DIN 3202-F4)
• Flange dimensions according to DIN EN 1092-2 standard
• Compatible with electric actuator installation
• Easy to open and close with complete sealing when closed
• Installable in all orientations (horizontal, vertical, and angled)
• Maintenance free
• Performance testing and inspections in compliance with EN 12516-3

Pressure loss coefficient of elastic sealing wedge gate valves when fully open as described below:

All internal and external surfaces of the valve body are coated with pure epoxy resin applied electrostatically (RAL 5005 or RAL 5015), with a minimum layer thickness of 250 microns and certified by reputable international organizations for use in drinking water.

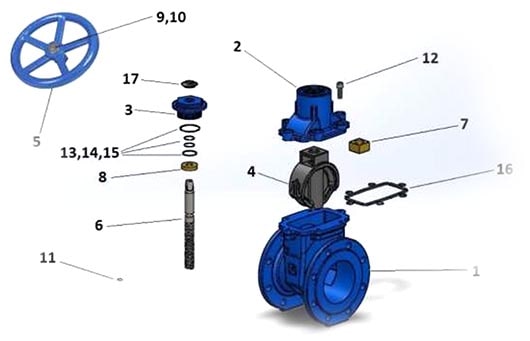

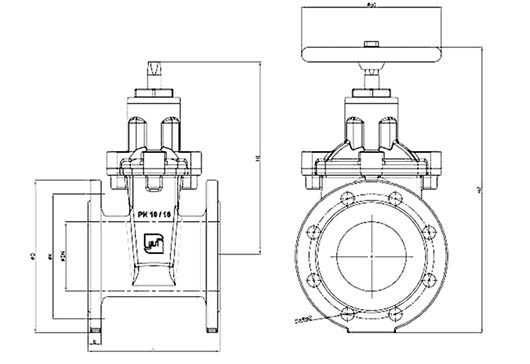

Materials and Dimensions

EN-GJS-5007 is available based on request

DIN EN 1092-2 (DIN 2501)DIN EN 558-1

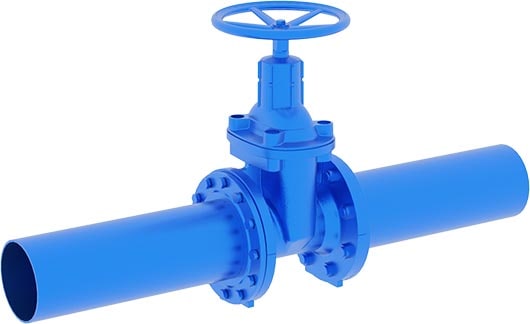

Resilient wedge valve for ductile iron pipes

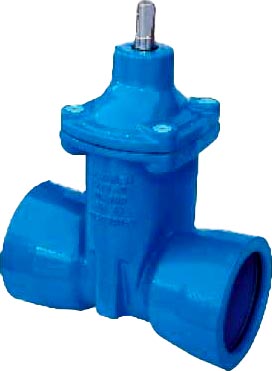

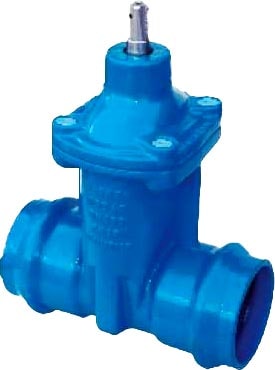

Due to production using lost foam casting technology, this product can be offered in various types such as two-socket valves, flanged socket valves, etc. Additionally, it can be manufactured to connect with various bends (at different angles) or cones upon customer request.

Resilient wedge valve compatible with low thickness

To achieve more information about Resilient wedge valve compatible with low thickness Ductile iron pipes, please contact with hanyco technical department.
